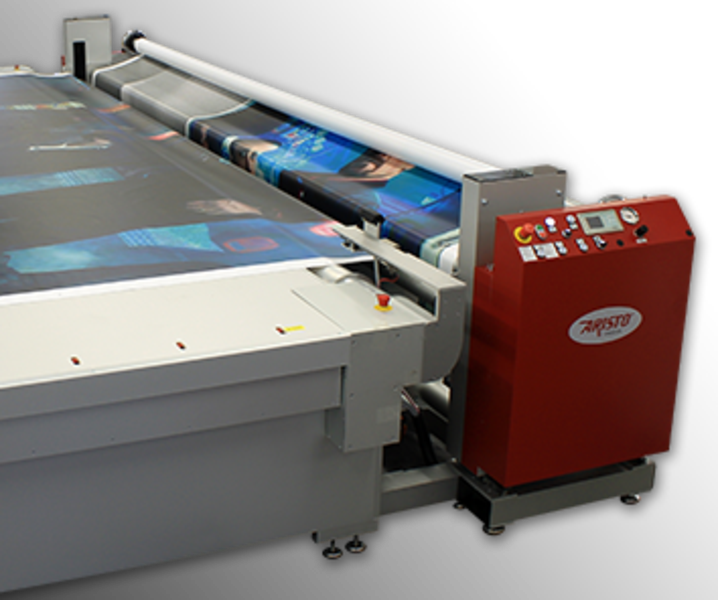

Unwinding system UW for rolls up to 500 kg
Unwinding system UW for rolls up to 500 kg
£0.00
Roll weight up to 500 kg
Roll diameter up to 1000 mm
Available for ARISTOMAT series LFC
High-end solution for soft, flexible roll materials such as textiles. The basic system can be adjusted to the different demands of material and work process with various options.
Details
Roll diameter up to 1000 mm
Roll width up to 5100 mm
Roll weight up to 500 kg
Roll core diameter 3" and 6"
Available for ARISTOMAT series LFC
Options
Dancer roll for a constant web tension

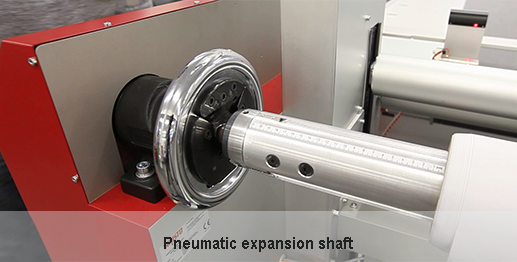

Pneumatic shaft brake, especially for heavy rols

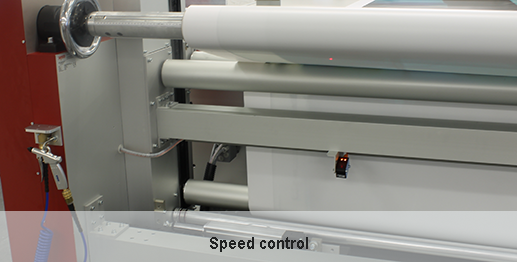

Laser for speed control

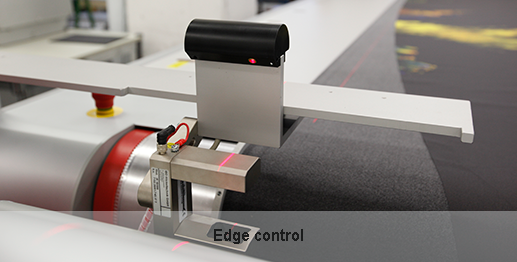

Edge control
Integrated RollerBlock, also with motor drive

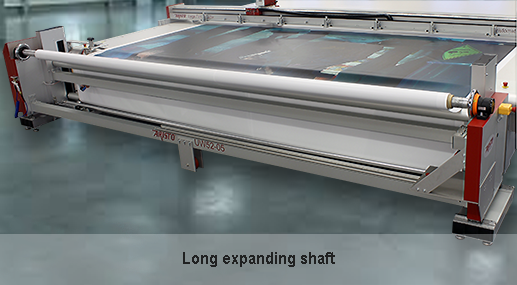

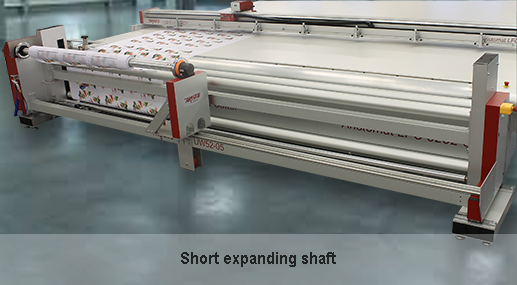

Various shafts
