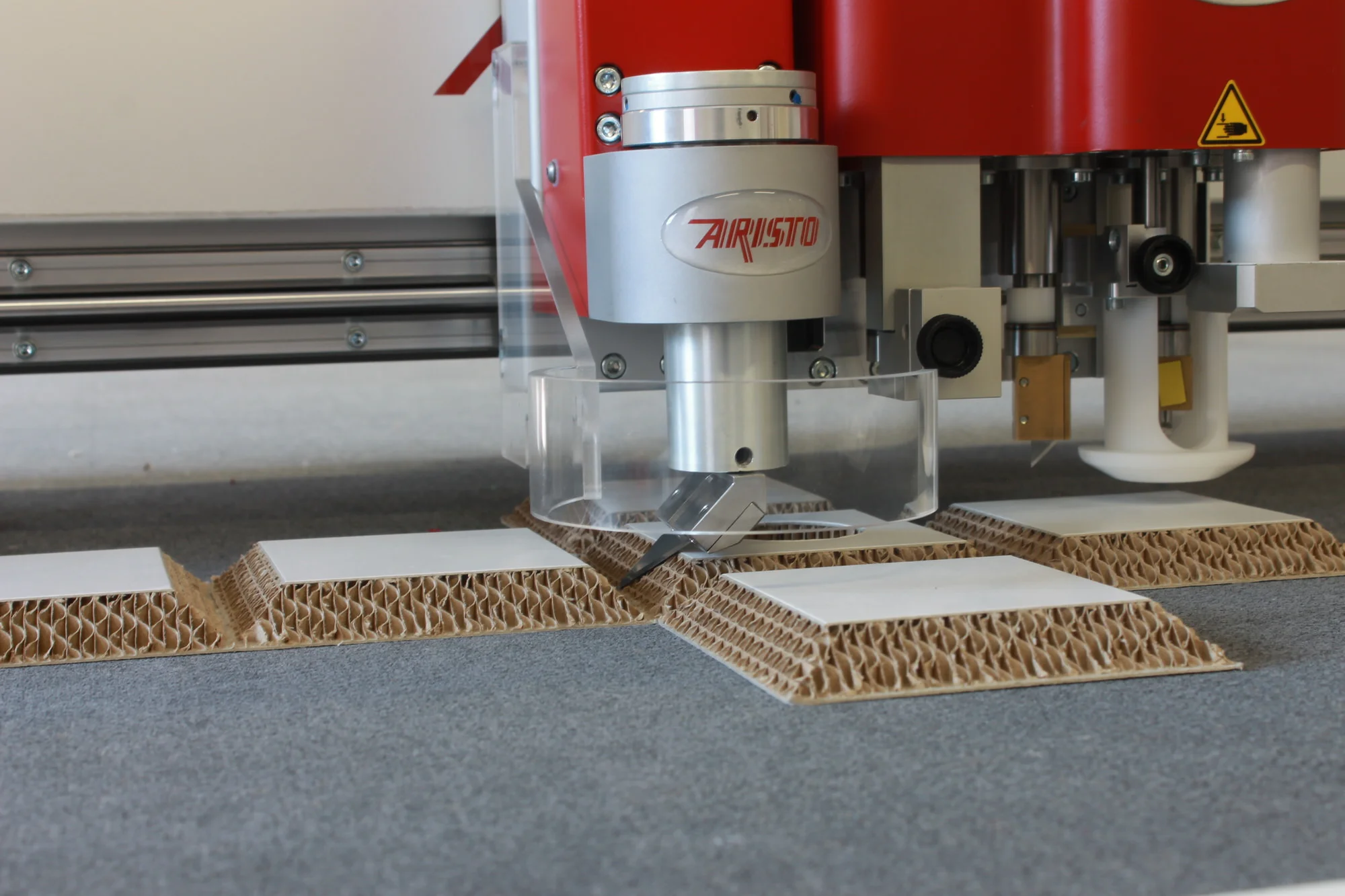

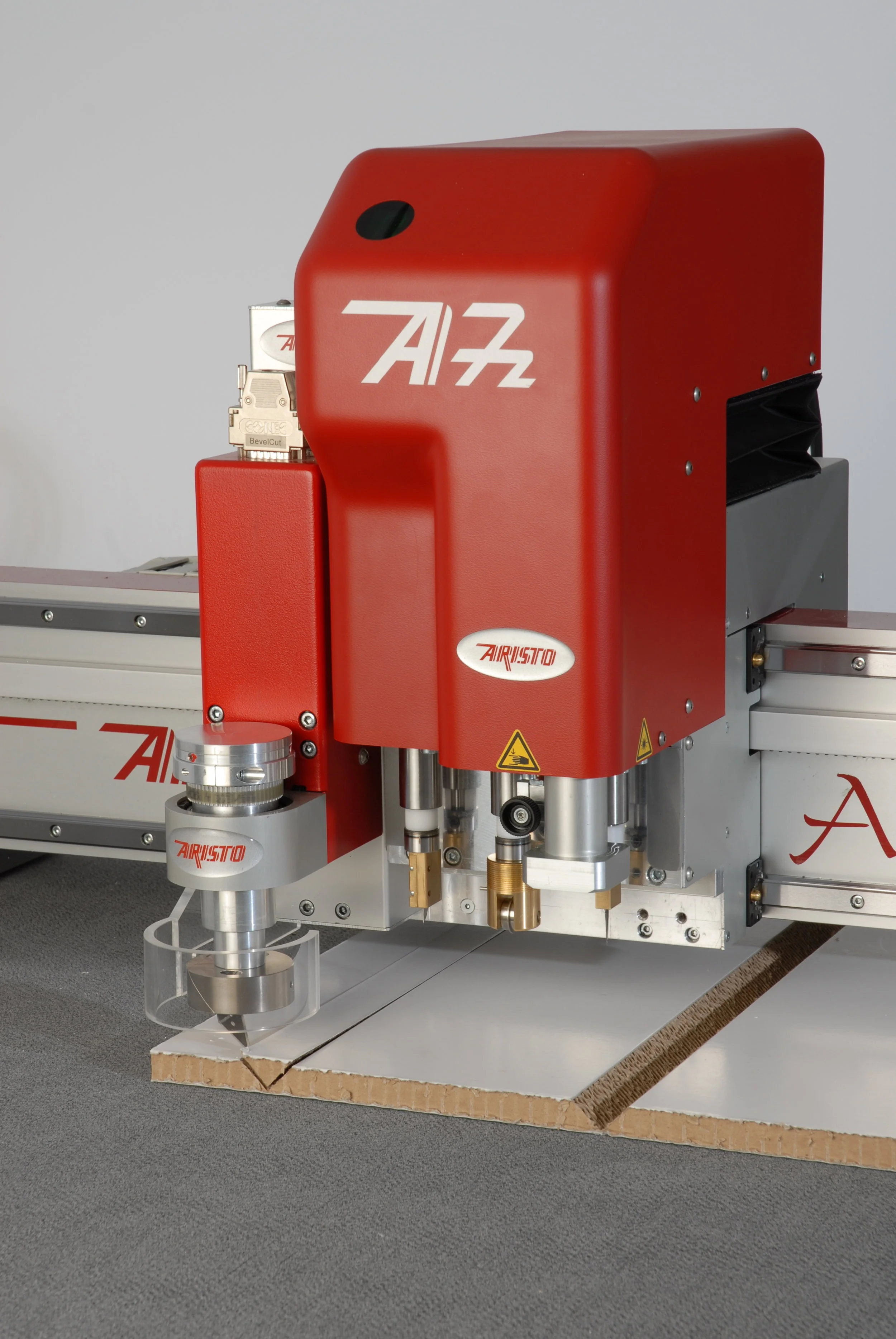

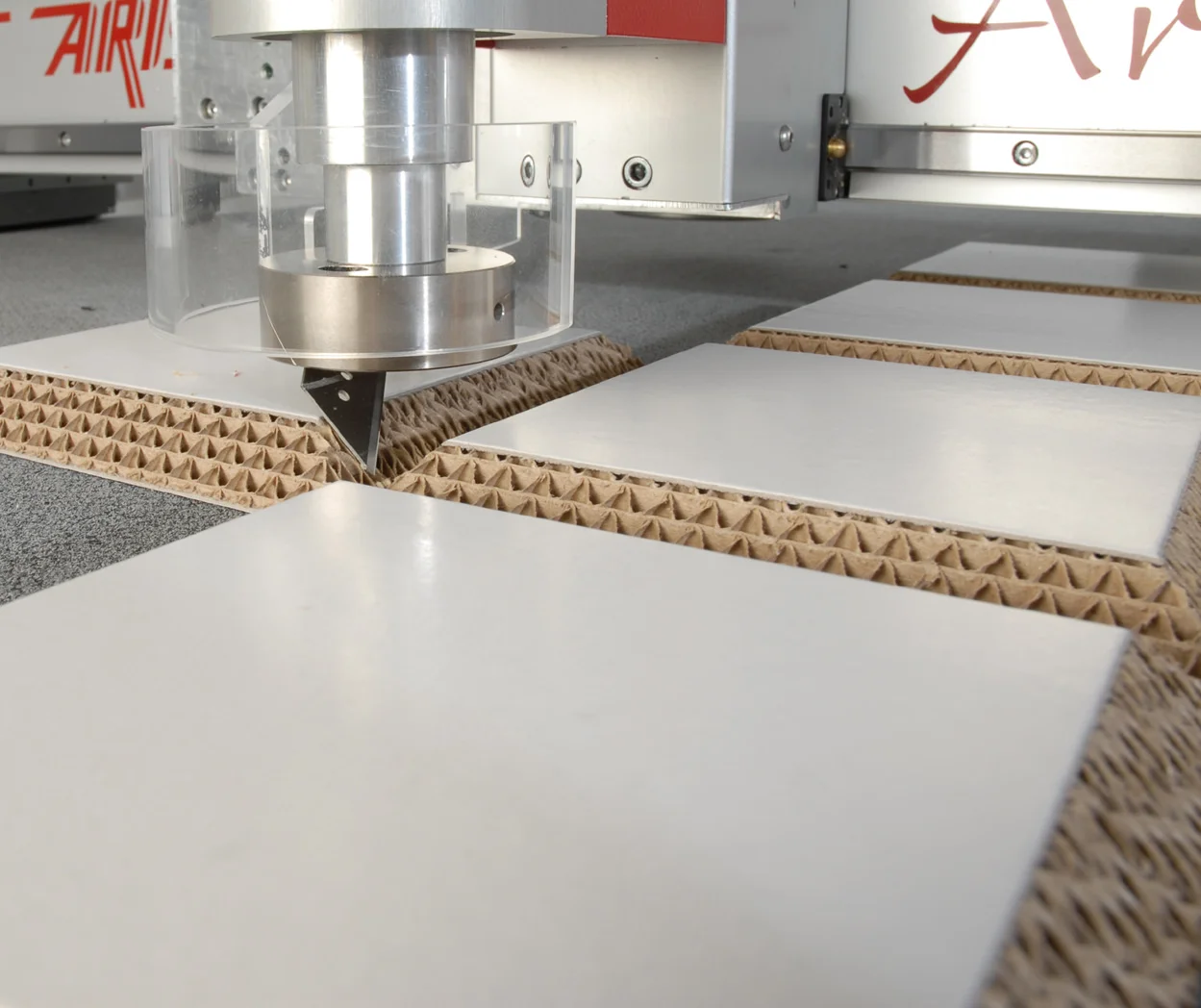

The BevelCut tool head can be readily changed between 30°, 45°, and 60° orientations to cut materials such as: X-board, Kappa, 3-fold corrugated board, or rubber. This allows every user the option of processing displays, rigid packaging and gaskets with the push of a button.

It comes fully equipped with fully controllable (Z) height and (C) turn axes, and can therefore be used with an uncompromising range of motion to perform even the most complicated of cutting tasks.

Features

• 45°, 30° and 60° knife, tangential controlled

• slanted cutting into the material through simultaneous movement of the Z- and X- or Y-axis

• up to 18 mm cutting depth

• also available as single-sided cut

• controlled C-axis for the tangential drive

• controlled Z-axis for immersion to cutting depth

• combinable with other ARISTO tool heads

• available for ARISTOMAT GL, TL and LFC series

Applications

• Signage

• Packaging

Materials

• Textiles
