Multifunctional Tool Heads
Multifunctional Tool Heads
The MultiHead is the very definition of a flexible and adaptable tool that will tackle virtually any job. Whether it be processing cartons, cardboard, corrugated cardboard, honeycomb structures, gaskets, plastics, foams, vinyls, laminates, composites, carbon fibre, fibreglass and anything else you can think of the MultiHead is the right tool for the job.

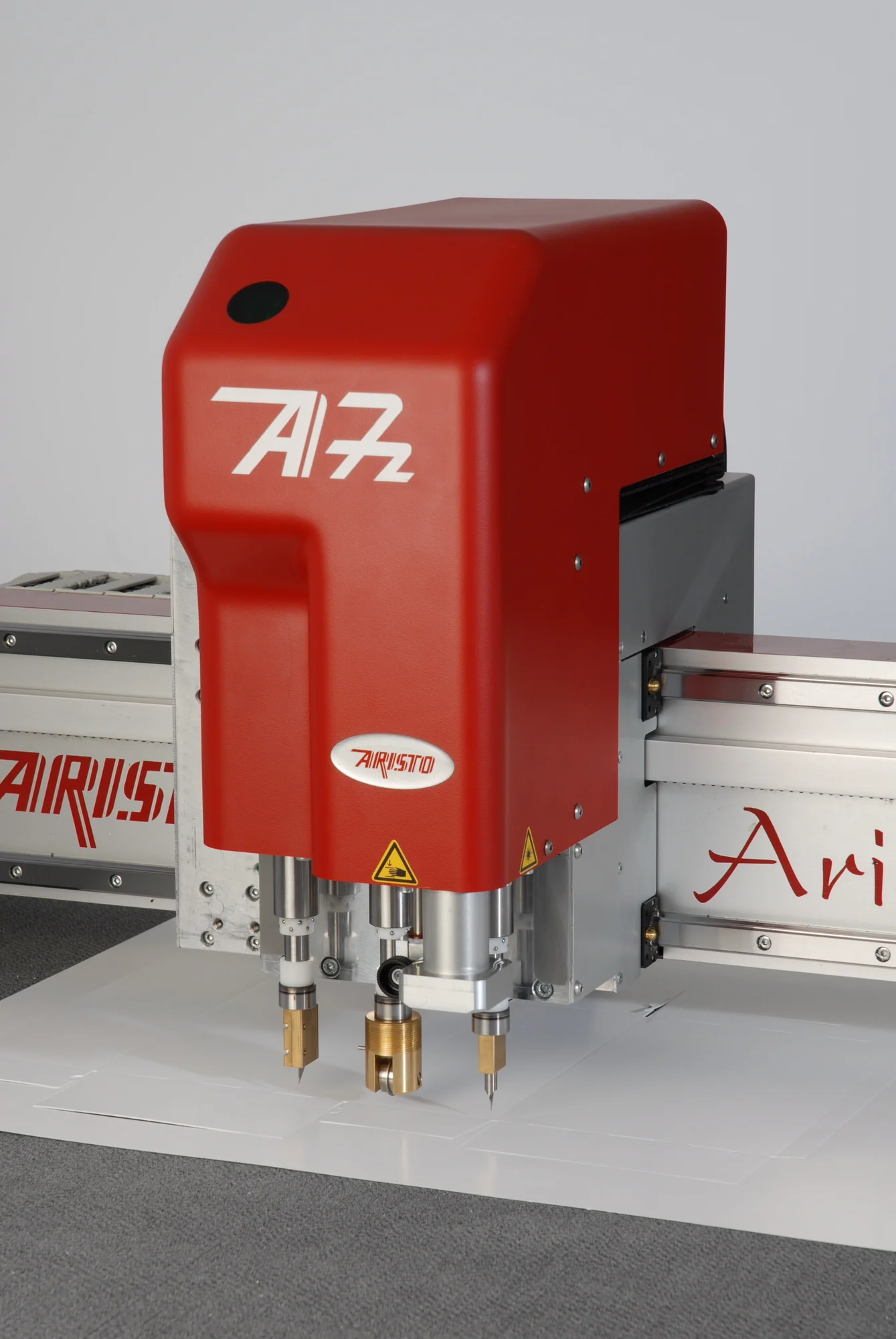

The fifth MultiHead generation sets new standards in ARISTO’s
tool head family.
- controlled depth adjustment
- height sensor
- process database "CutRecall" (option)
Up to seven already set tools, an integrated, controlled depth adjustment (Z-axis) and software-controlled pressure for each tool position provide the user with the possibility of executing varying process steps without further intervention.
The table surface and material thickness are automatically recorded by a height sensor.
The efficiency is additionally increased by the access to the database CutRecall. With CutRecall the complex material and process specific parameter settings are saved. Data retrieval for a work process takes place as fast as lighting. Manual input and typing errors are avoided, setup times reduced and the know-how remains retained
A controlled depth adjustment enables the using of optimal process parameters. Very tough materials can so be depth controlled processed.
For the recognition of fiducials, the MultiHead V can be fitted with the camera system AutomaticEye; this increases the level of automation and rounds off the performance.
These MultiHeads are available for the ARISTOMAT series GL, TL and LFC.
